Oписание продукта

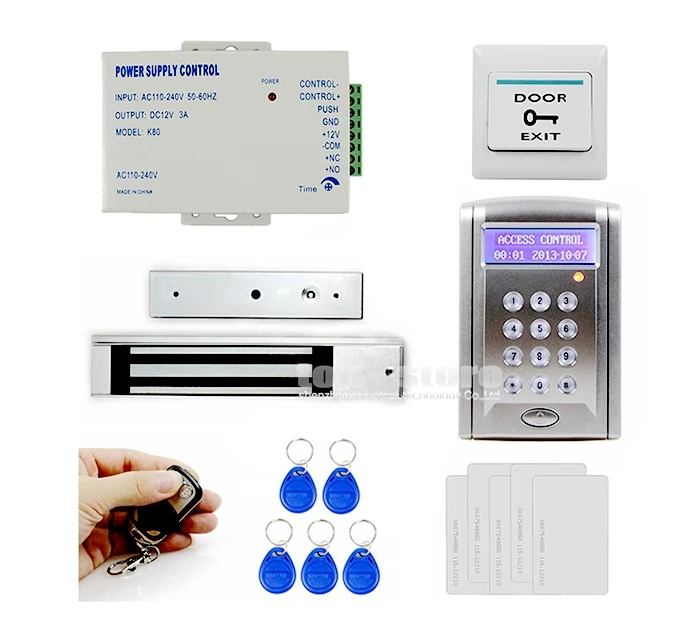

DIY Complete Kit RFID Access Control System for Home/Office Use



Access Controller + Power Supply + Magnetic Lock + 5 Keyfob + 5 ID Card+ Exit Button

+ Remote Control



Full Kit Set !  Save More, Enjoy More !!



 BC200 TOP .jpg





Why use access control ?



Access control enables you to control who has access to your building. Locks and keys also allow you to secure your building, but when keys are lost or stolen, the inconvenience and expense of changing locks and re-issuing keys can be considerable. Keys may also be copied, creating even more security risks.





CAR KEY.jpg







Access Controller:


Here is a Door Access Control Keypad 125KHz RFID Card Reader which has the Elegant design, you can use it to increase your home and office security! With doorbell button!! It is quite easy to use!



  • Built-in RFID reader has external port for another Wigand 26 reader to record all in and out transactions.
  • Memory capacity: 2,000 user cards and 1 passwords
  • 32 time periods/64 time sets/16 application groups/8 types of holidays/validity period for card/card PIN (6 numbers)
  • Access transaction record offline: 8,000 entries
  • Not need to connect on  computer.
  • Max number of controller connection: 16
  • Main I/O function: electric-lock, open button can be integrated with electronic map, freely set name and position for doors
  • Display name, card code and serial number of the access person in real time.



Specifications:



  • Working Voltage: DC: 8-25V
  • Current comsumption: <60mA
  • Current to open E/M lock: <1000mA
  • Card Type: ID card
  • Frequency: 125Khz
  • Wiegand 26 Port: Two
  • Relay output: Two
  • Reading distance: 4-15CM
  • Communication mode: One RS485
  • Dimension: L133mm × W86mm × H27mm
  • Build-in word base:16 x16 national class two character base.











Power Supply:



This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.



  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Set NC / NO outputs, can control various types of electric locks
  • Based delay control circuit, lock time can be in 0-15 seconds
  • The circuit board has remote control port.



Specification:



  • Input Voltage: AC 110~220V  50~60Hz
  • Output Voltage: DC 12V 3A
  • Outer Dimensions: 103 x 68 x 33mm

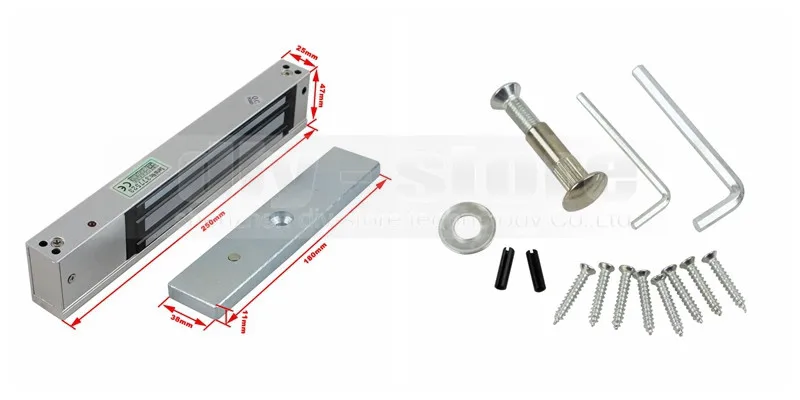

Magnetic Lock:



It is a High-performance 280kg 600 LBs Holding Force electric magnetic lock which suits for many access control system. This electric lock can meet your need perfectly. Widely used in wood door, iron door, glass door , etc.



  • NC Mode - (Locked while supplied with power) Fail Safe Mode
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Doorr, Fireproof Door, etc.
  • Safety function: Built-in voltage spike suppressor
  • Anti-Residual Magnesium Designed



Specifications:

  • Voltage: 12V DC
  • Application: wood, iron, glass doors
  • Faceplate dimensions: 180 x 38 x 11mm
  • Main body dimensions: 250 x 48 x 27mm
  • Pack includes: electric magnetic lock, installation diagrams
  • Construction: stainless steel.





280KG







125KHz RFID ID Keyfobs :



These are 10pcs 125KHz RFID Proximity Keyfobs / ID Cards, they can work with the product which has 125Khz RFID card reader.



  • Water resistant
  • Detecting distance: 3-10cm
  • Operation frequency: 125Khz
  • Each comes with Key ring included
  • Compatible with all RFID ID card reader to gain access
  • Each token pre-programmed with unique ID which is printed on it.



/common/upload/140/790/667/085/1407906670853_hz-fileserver-upload-10_1845274







Exit Button :



This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:



  • Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure  Mode)
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc















Remote Control:



This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 50 meters:




XFXXXi







OptionalThe extral cost is 9.89 USD, if you need it, please feel free to contact with us!



http://www.aliexpress.com/store/product/High-Quality-DC12V-Electronic-Door-Bell-For-Door-Access-Control-System-Kit-White-Free-Shipping/1361421_1973757915.html



Doorbell:











Connection Diagram:





000









What\'s in:





  • 1 x Access control keypad
  • 1 x Magnetic lock
  • 1 x Power supply
  • 1 x Remote control
  • 1 x Exit button
  • 5 x Keyfob
  • 5 x ID card
