YobangSecurity Metal RFID Reader Access Control Security System Keypad ID Card & Magnetic Lock Door Bell Power Supply Remote

YobangSecurity Metal RFID Reader Access Control Security System Keypad ID Card & Magnetic Lock Door Bell Power Supply Remote
  • Продавецwww.yourartsdesire.us
  • Список ценUS $101.10piece
  • Продажная ценаUS $101.10piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (596)

Oписание продукта

item description_01

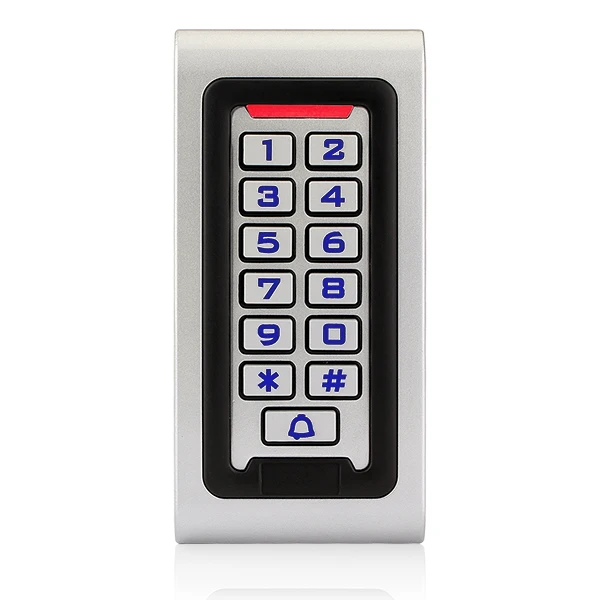

Waterproof IP68 RFID 125KHZ ID Keypad Single Door Stand-alone Access Control Metal Case&Wiegand 26 bit+10pcs RFID Cards F1215


The unit is a single door multifunction standalone access controller, which is an ideal choice for door access for shops, households, commercial and industrial applications, such as, factories, warehouse, laboratories, banks and prisons.


  1. Waterproof,conforms to IP68
  2. Strong Zinc Alloy Electroplated anti-vandal case
  3. Full programming from the keypad
  4. 2000 users,Supports Card, PIN, Card + PIN
  5. Can be used as a stand alone keypad
  6. Backlight keys
  7. Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller
  8. Adjustable door output time,alarm time,door open time
  9. Very low power consumption (30mA)
  10. Fast operation speed,<20ms with 2000 users
  11. Lock output current short circuit protection
  12. Easy to install and program
  13. Built-in light dependent resistor (LDR) for anti tamper
  14. Built-in buzzer
  15. Red,yellow and green LEDs display the working status


  • Operating Voltage : DC12V
  • User Capacity: 2000
  • Card Reading Distance: 5~8cm
  • Current: <30mA (Standby); <60mA (Active)
  • Lock Output Load: <3A
  • Alarm Output Load: <20A
  • Operation Temperature: -45C~60C
  • Operating Humidity: 10%~90% RH
  • Waterproof: Conforms to IP68
  • Adjustable Door Relay time: 0~99 seconds
  • Wiegand Interface: Wiegand 26 bit

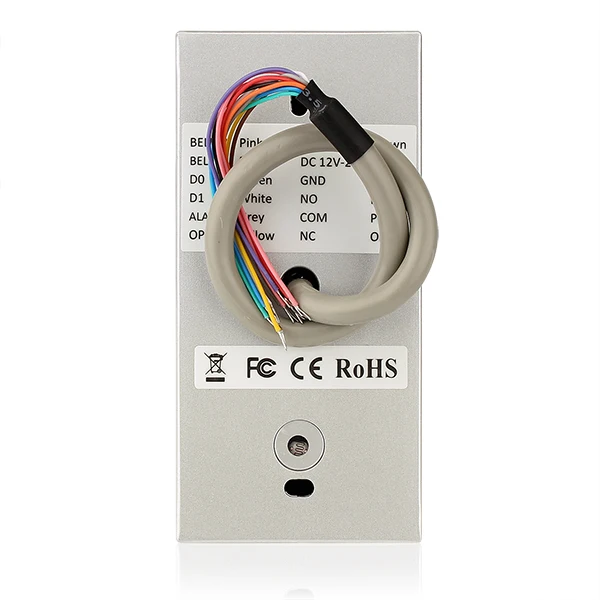

  • Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader
  • Compatible Cards: EM standard card (Can\'t support some encrypted cards,such as HID, Cobra, APCIK, etc)
  • Frequency: 125khz

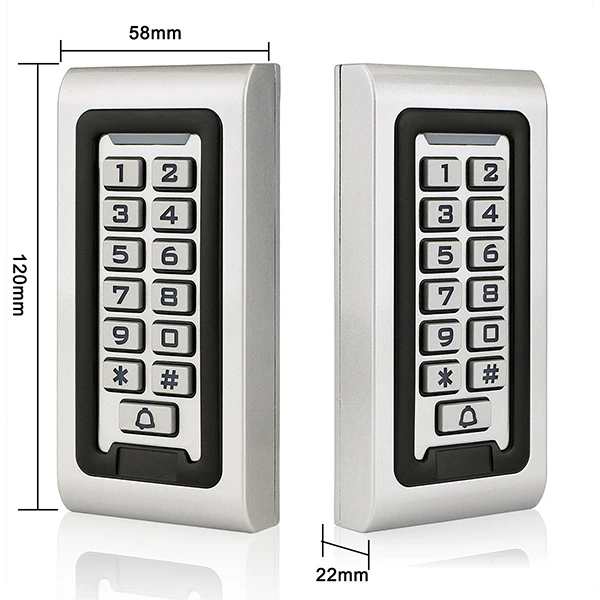

  • Dimension: Approx. 120(W)x58(H)x22(D) mm
  • Net Weight: Approx. 371g

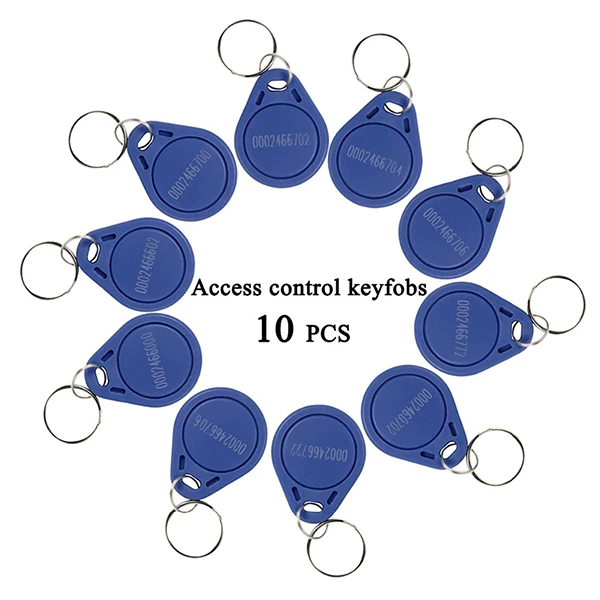

RFID keyfobs Features:
It applies to access control, hotel locks, staff attendance and school campus access and payment control, identification and security systems, parking lot entry and payment, social security management, transportation payment, municipal and ancillary service payment.
Note: this keyfobs can\'t writable, just can read only, it has unique ID number. if you need rewritable keyfobs, please contact with us.
RFID keyfobs Specifications:

  1. Weight: 4g/pcs
  2. Size:4.0* 3.1 * 0.4cm
  3. Frequency: 125Khz
  4. Sensing distance: 3-10cm
  5. Temperature : -20 Celsius~ +50 Celsius
  6. 100% Brand New
  7. Compatible with all Door Entry system
  8. Each keyfob has an unique ID number
  9. Each comes with Key ring included
  10. Compatible with all RFID reader to gain access
  11. No external power required
  12. Brand new key inductive card for entrance guard system
  13. Easy to carry
  14. Water resistant

Package Include:

  • 1* Access Control
  • 1* English User Manual
  • 10* RFID keyfobs (Blue color in stock)
