YobangSecurity Metal RFID Reader Access Control Security System Keypad ID Card & Magnetic Lock Door Bell Power Supply Remote

YobangSecurity Metal RFID Reader Access Control Security System Keypad ID Card & Magnetic Lock Door Bell Power Supply Remote
  • Продавецwww.yourartsdesire.us
  • Список ценUS $98.90piece
  • Продажная ценаUS $98.90piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,1 (199)

Oписание продукта

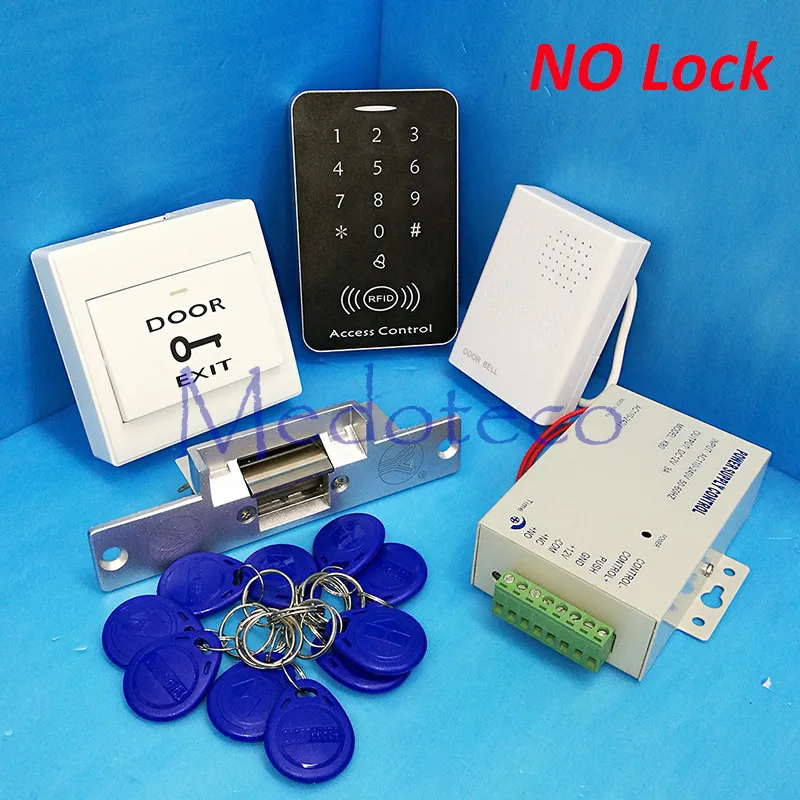

Full Complete 125KHz Rfid Card Door Access Control Security System Kit +Electric Strike Lock+Power Supply+Door Bell

T05 adPL



Kit-04NO

Or

450NC-02



             1 PC Access Control
10PCS 125khz ID Keyfob Card
1 PC 12V3A Power Supply
1 PC Fail Secure NO or Fail Safe NC Electric Strike Lock
1 PC Wired Door bell
1 PC Exit Button



diagram

dia





03-0202-01



·Work Voltage:Dc 12V
·Open Lock Current:≤0.1A
·User Capacity: 1000 users
·Inductive Distance:5~15mm
·Card type:EM/ID
.Frequency:125KHz

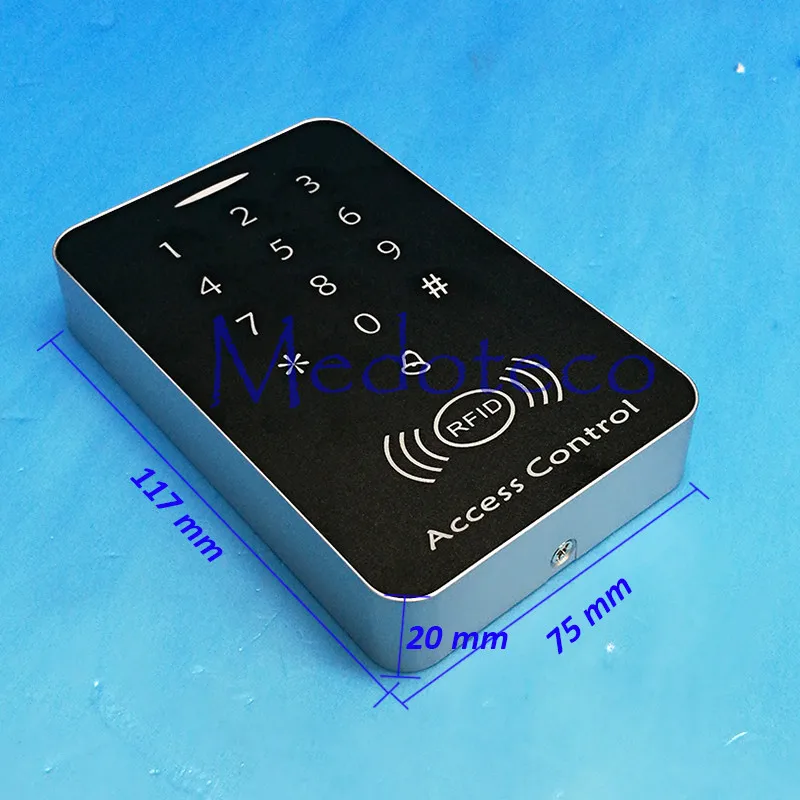

·Size:117*75*20mm
·Weight:0.10kg



·Supporting card,password,card+password to open door
·Offline work
·Power off data protection function
·Connect to the door bell by wire or wireless with accordance to customer requirement and support the switch for opening the door

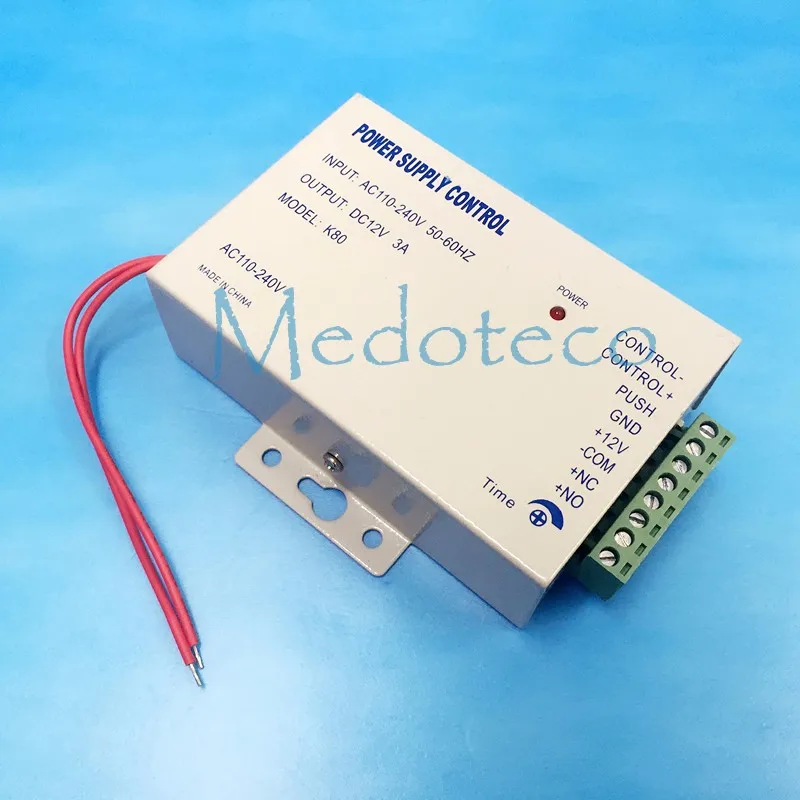

Power Supply

K80-1001



This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.
It controls electric lock directly;
Help to reduce overload for access controller;
Automatic protection function for unexpected short circuit or power off;
NC/NO output modes selectable for various types of electric locks

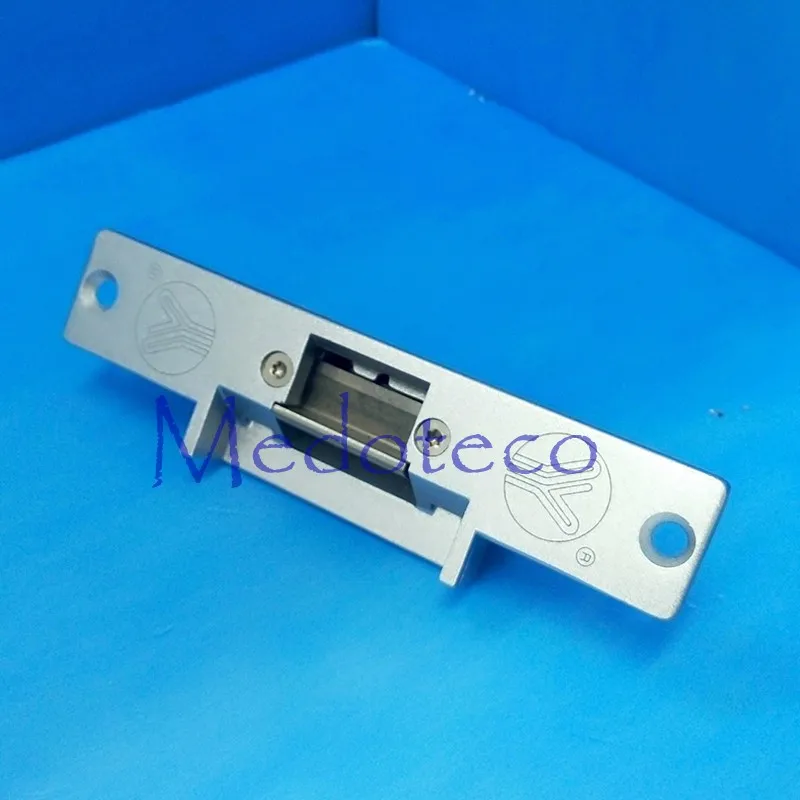

Electric Lock

YS130-1002

Lock Size:150Lx39.5Wx34H(mm)
lt structure:Stainless Steel
Holding Stength:500kg
Voltage:DC12V
Current:200mA
Feature:Fail Secure (YS-130NO)/Fail Safe (YS-130NC)
Suitable For:Wooden Door,Metal Door,PVC Door
Surface Temperature:Within +20
Suitable Temperature:-10~+55(14-131F)
Operating Humidity:0~90%(non-condensing)
Face plate Housing:Painted Steel
Bolt Housing:Stainless steel,Draw the Polishing of silk
Function:Built-out MOV



Exit Button

004

This is a plastic exit button, it is widely used in the door access control system.If you want to go out, you just need to press this Exit Button, then you can go out:

Support both NC Mode (Fail Safe Mode) and NO Mode (Fail Secure Mode);
Performance Testing: 1000000 times aging test;
Material: Hard Plastic.



Wired Door Bell

B04-1001

1 Connected to DC12V power supply, then the red positive (+), then the black negative (-)

2 Green, yellow, two-line short answer it, it can send two ding-dong ding-dong sound.

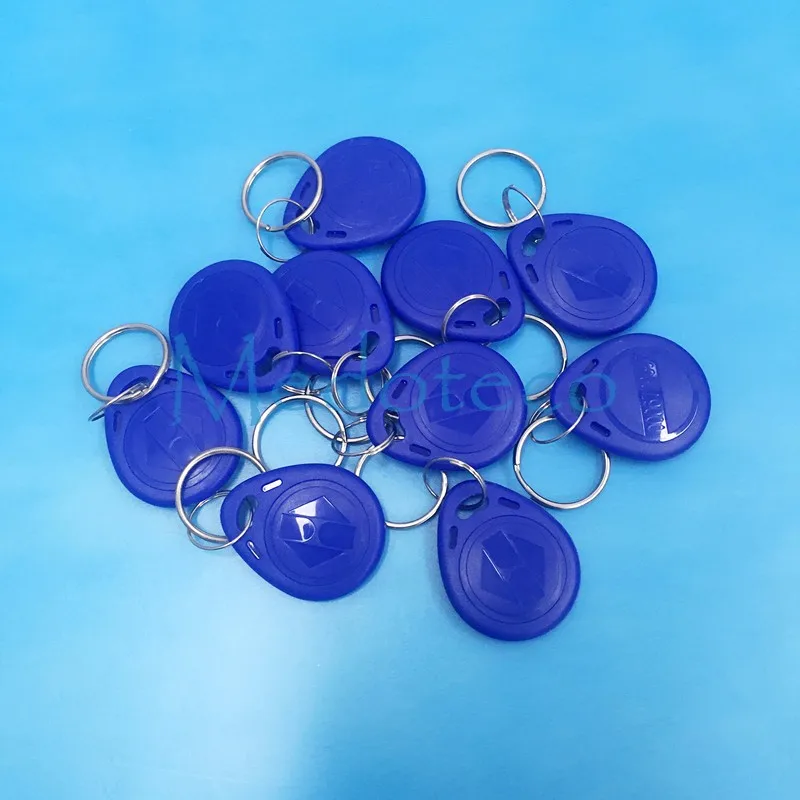

Card

EMKL-1001

These are 10pcs 125KHz RFID Proximity Keyfobs

they can work with the product which has 125Khz RFID card reader.

Operation Frequency: 125KHz;

Reading distance: 3-5cm;

Each keyfob has an uniqe ID number.
