Oписание продукта

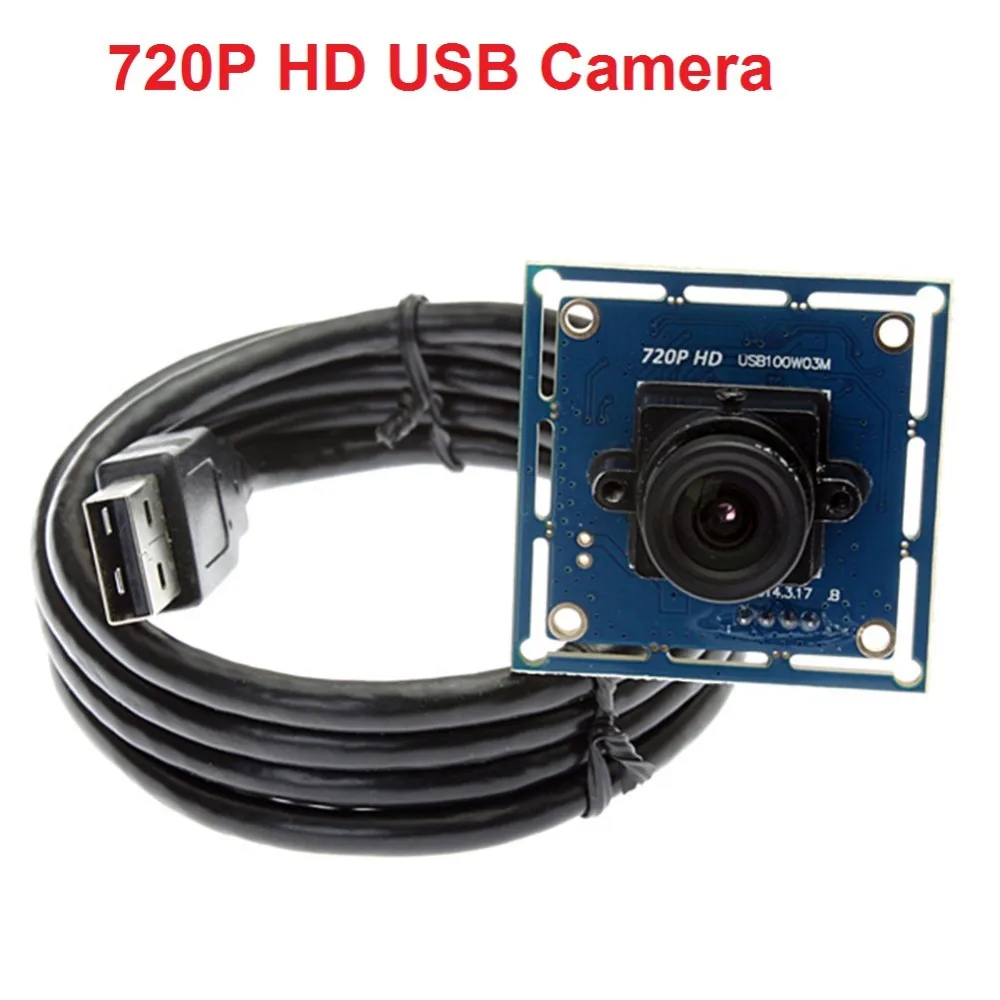

Free shipping 5pieces ELP 720P 1.0Megapixels ,1/4" OV9712 CMOS Sensor USB camera board, machine vision camera module



pack



1) 5*720P camera module with 3.6mm lens

2) 5* usb cable





display

IMG_8479IMG_8487IMG_8481IMG_8482IMG_8484IMG_8486IMG_8490IMG_8488



100W 03-1100W03-2100W03-3







description




Features:

*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment

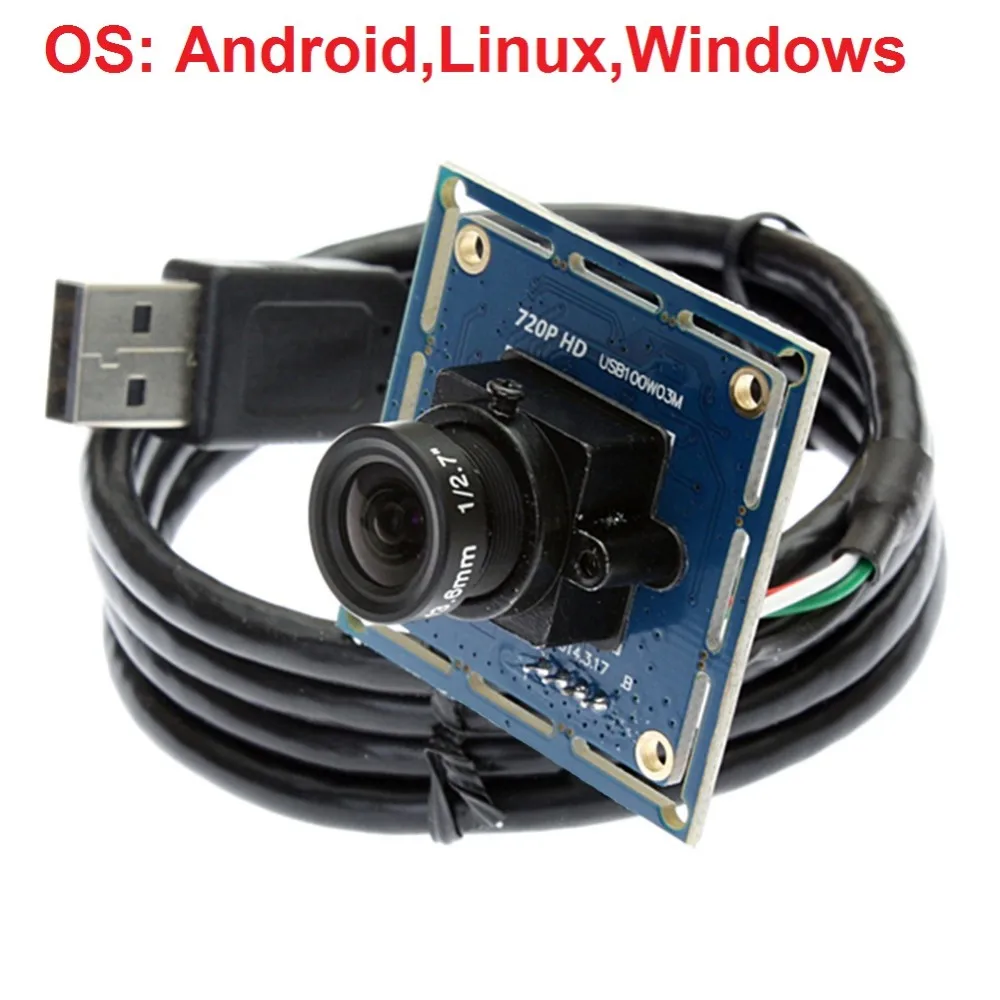

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC



Specification:

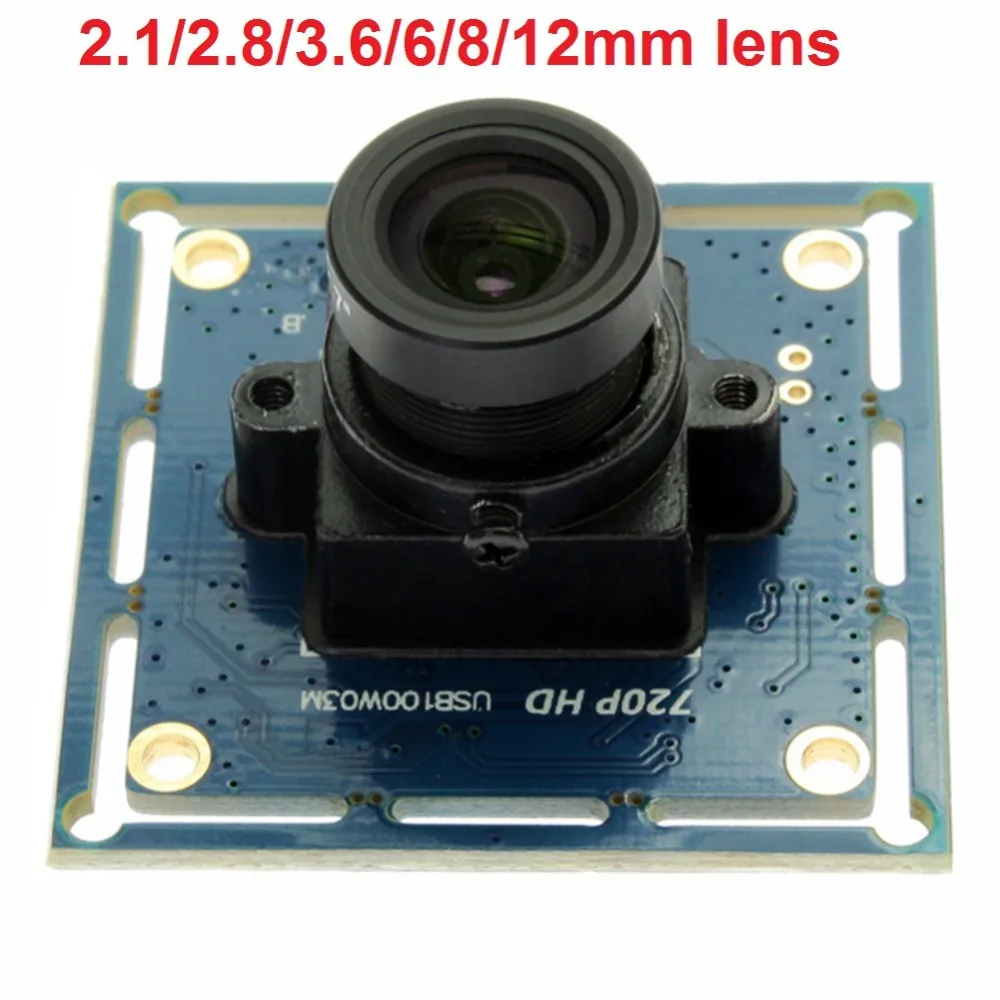

Optional models

ELP-USB100W03M-L21(2.1mm lens)
ELP-USB100W03M-L28(2.8mm lens)
ELP-USB100W03M-L36(3.6mm lens)
ELP-USB100W03M-L60(6mm lens)
ELP-USB100W03M-L80(8mm lens)
ELP-USB100W03M-L12(12mm lens)

Sensor

OV9712

Lens size

100W, 1.0megapixel, 1280X720

Max. Resolution

640X480 VGA

Picture format

YUY2
MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

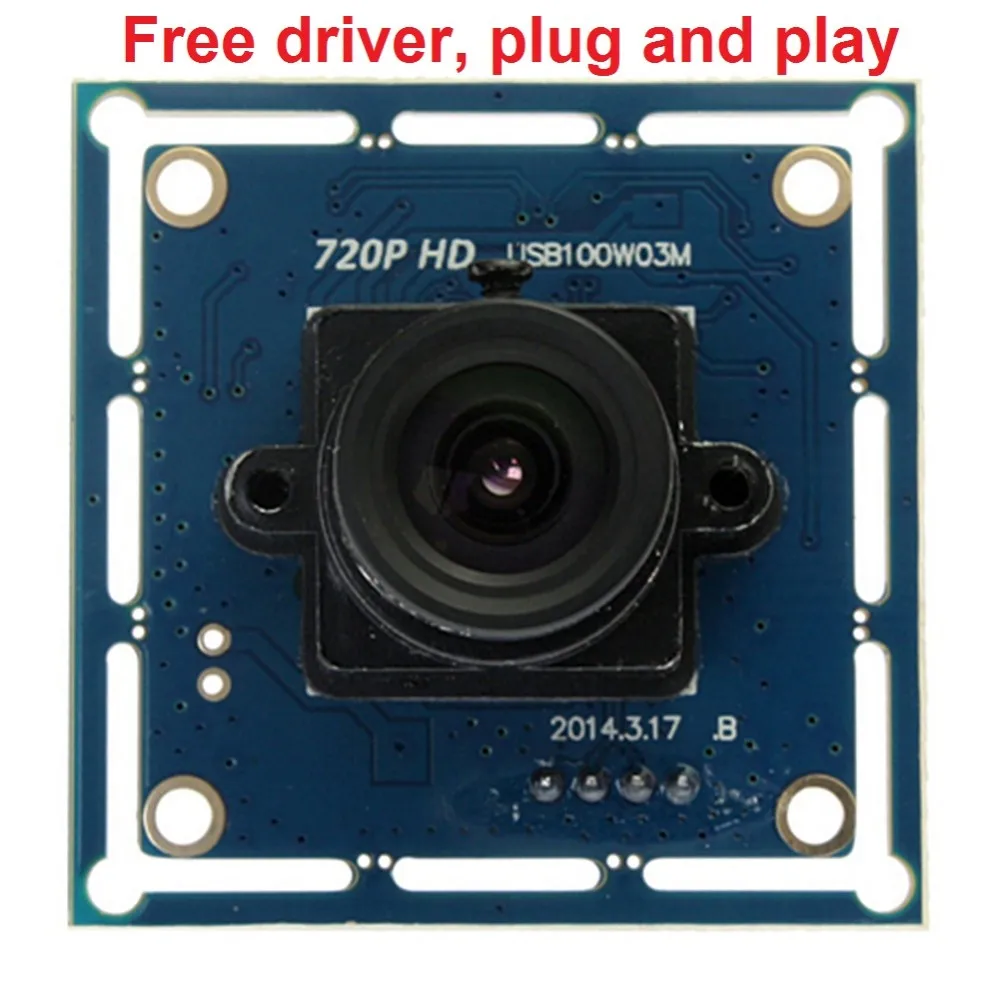

Support free driver

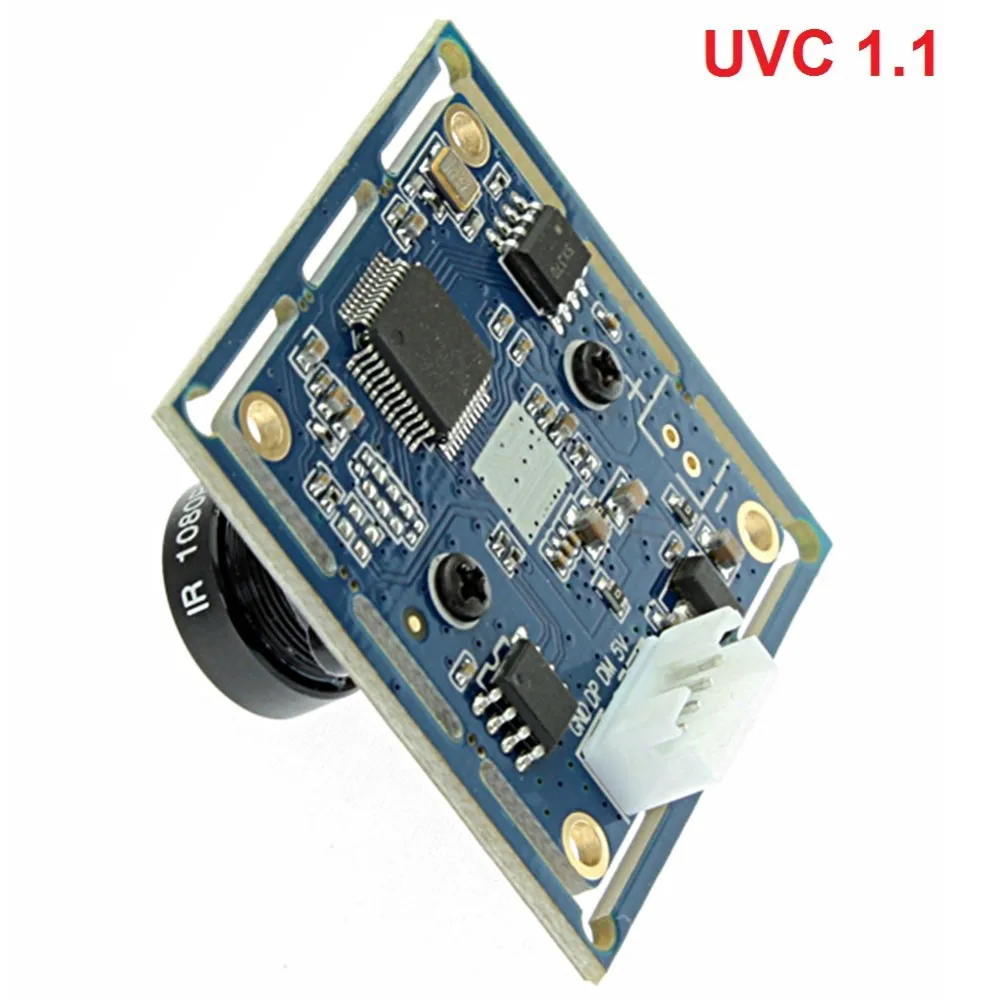

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1280 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 10fps
960 (H)   x 720 (V) pixels    MJPEG 30fps      YUY2 15fps
800 (H)   x 600 (V) pixels    MJPEG 30fps      YUY2 20fps
640 (H)   x 480 (V) pixels    MJPEG 30fps      YUY2 30fps
352(H)    x 288 (V) pixels    MJPEG 30fps      YUY2 30fps
320 (H)   x 240 (V) pixels    MJPEG 30fps      YUY2 30fps
176(H)    x 144 (V) pixels    MJPEG 30fps      YUY2 30fps
160 (H)   x 120 (V) pixels    MJPEG 30fps      YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

30-150 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

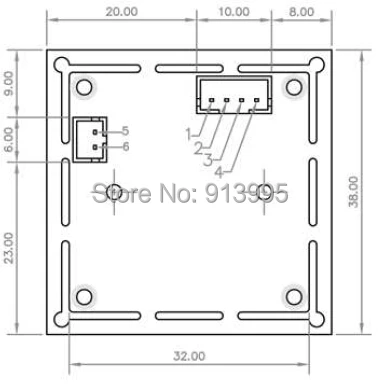

Size

32x32mm

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above



Effective Pixels:
1280 (H) x 720 (V) pixels
960 (H) x 720 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
352(H) x 288 (V) pixels
320 (H) x 240 (V) pixels
176(H) x 144 (V) pixels
160 (H) x 120 (V) pixels
(Other special size resolution is customized)


Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance, endoscope, Medical auxiliary equipment, etc.


CMOS  sensor for high quality image and low power consumption



720p with 8mm lens at about 4m720p picture2
