Oписание продукта

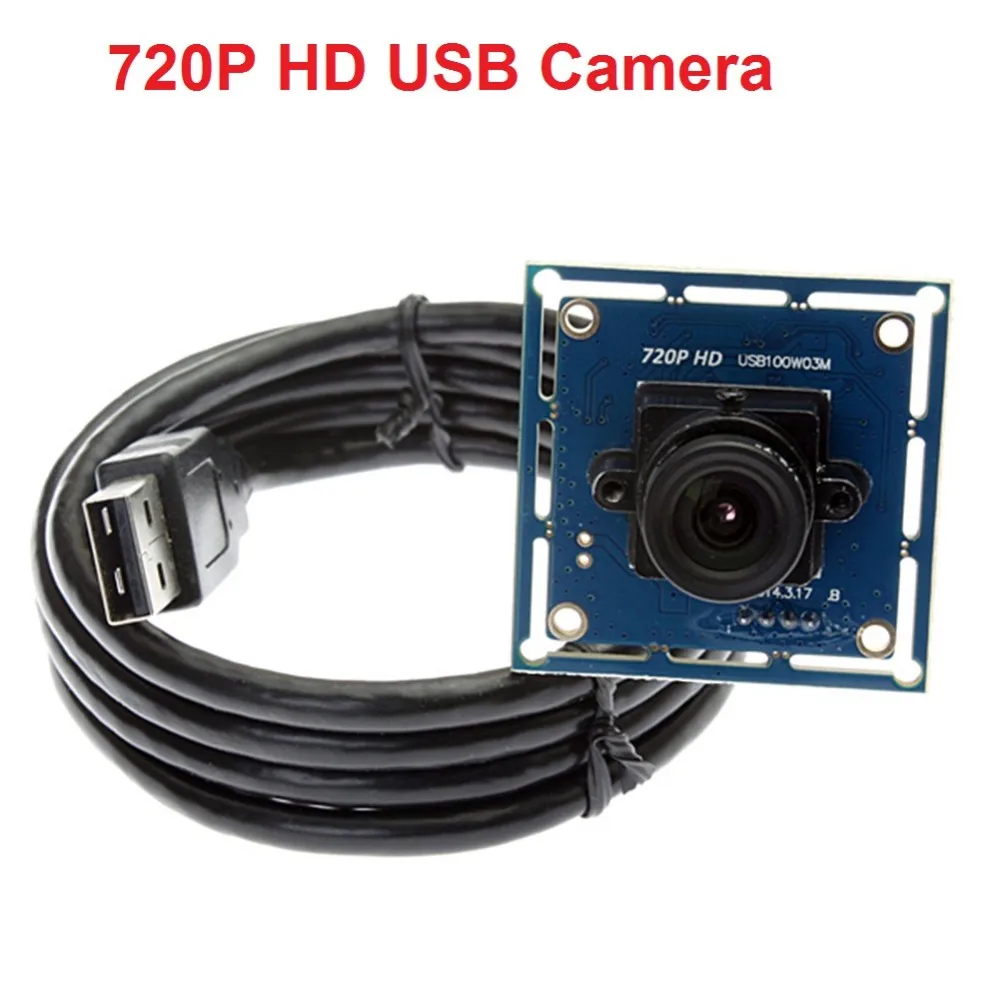

Free shipping 5 Pieces 720P Color CMOS OV9712  UVC Android mini HD usb camera  module for machinery equipement



Package include:

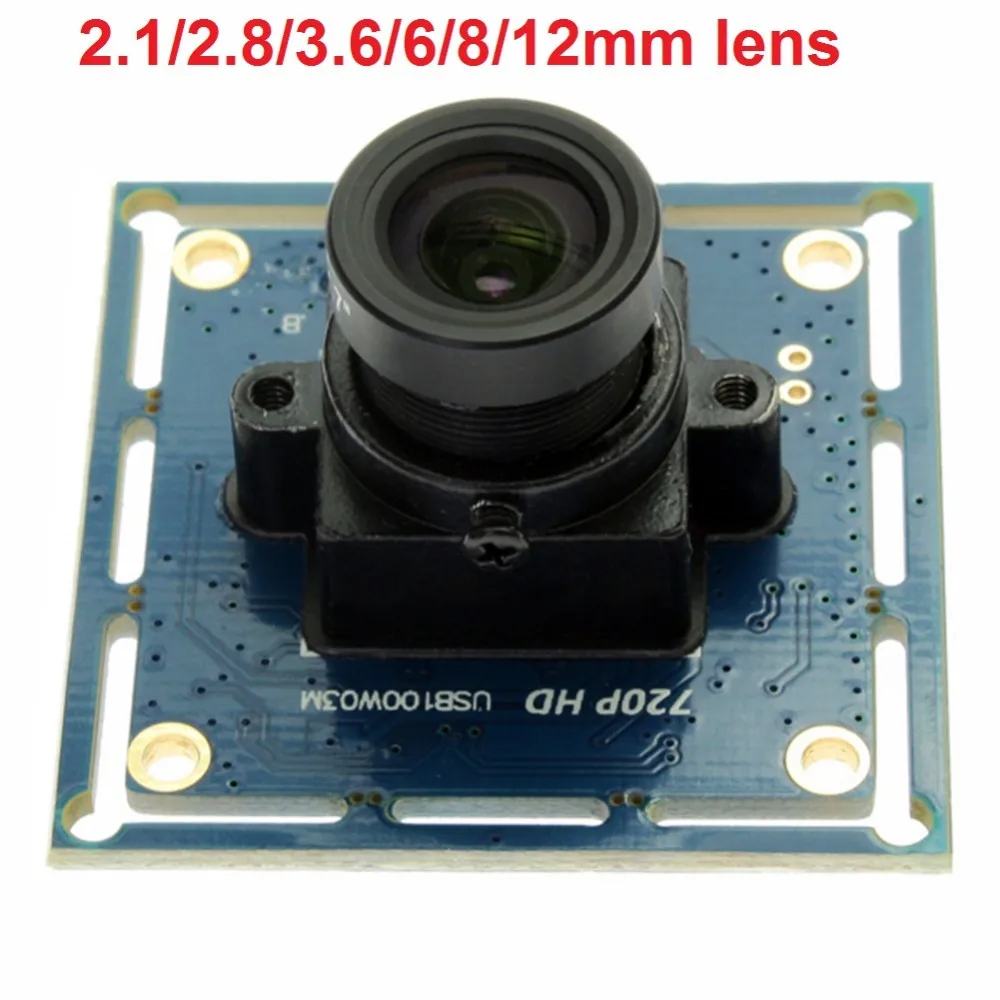

1) 5PC 720P usb camera module with 2.8mm lens default (2.1/2.8/3.6/6/8/12mm lens optional)

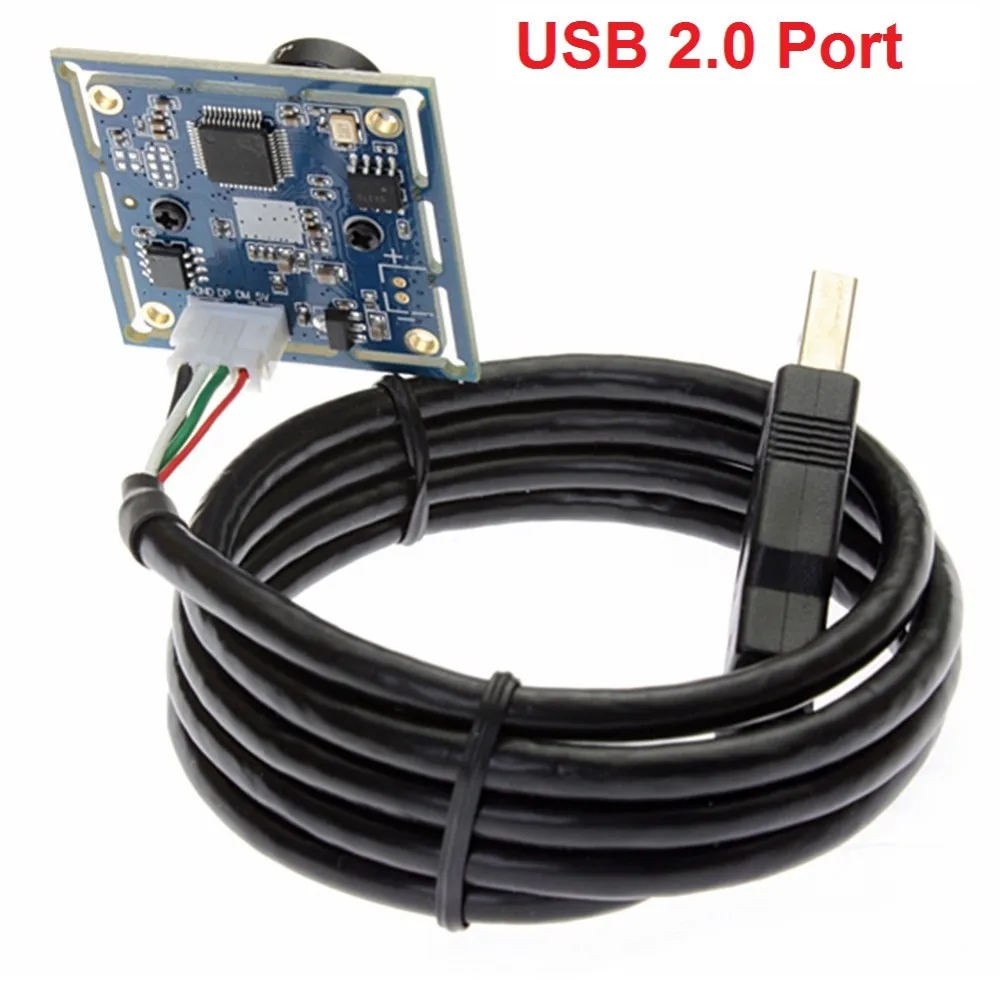

2) 5PC 1m usb cable( 2m/3m/5m optional)




Product show:



IMG_8479IMG_8482IMG_8481IMG_8487IMG_8484IMG_8486IMG_8490IMG_8488





720p picture2



Specifications:

Sensor: OV9712
Picture format: "YUY2 and MJPEG optional"/USB Protocal USB2.0 HS/FS

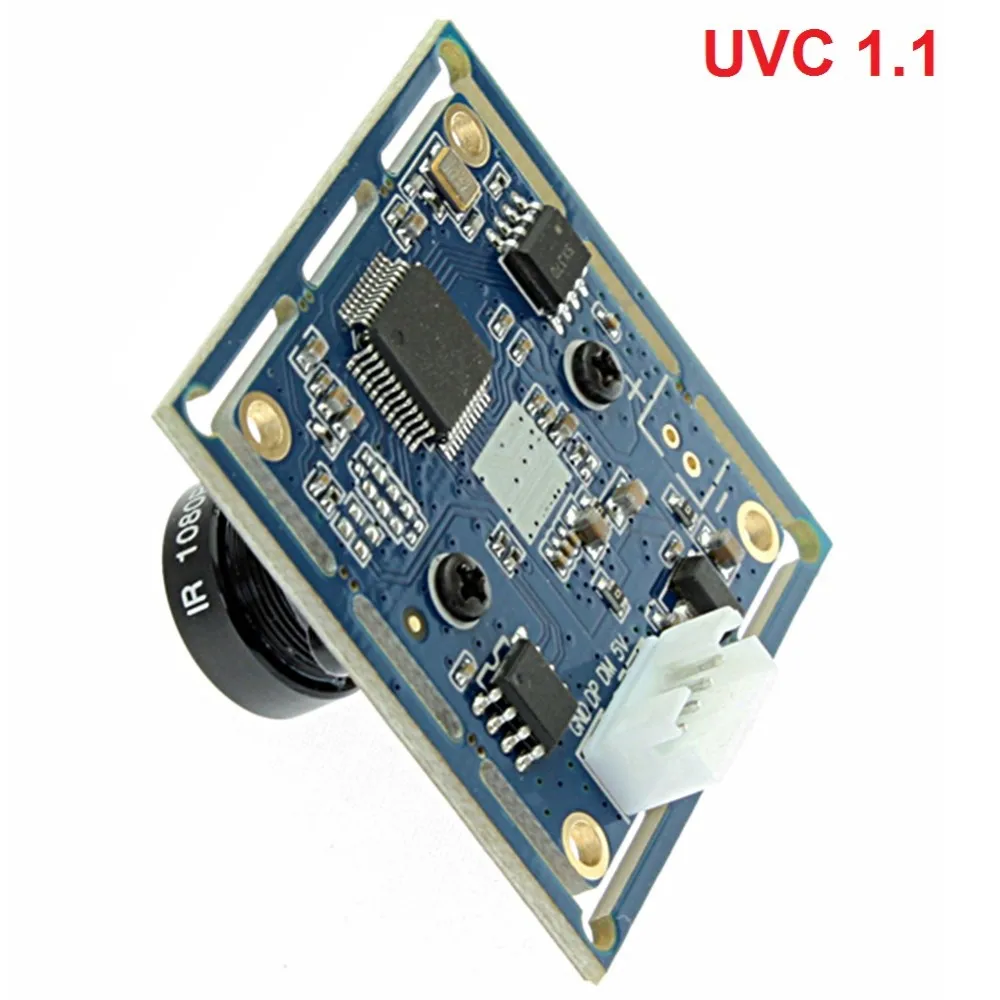

Support free driver USB Video Class(UVC)1.1
Auto exposure AEC Support/Auto white blance AEB Support
Effective Pixels: 1280 (H) x 720 (V) pixels/960 (H) x 720 (V) pixels / 800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels(Other special size resolution is customized)
Performance:
1280 (H) x 720 (V) pixels:  MJPEG 30fps      YUY2 10fps
960 (H) x 720 (V) pixels:    MJPEG 30fps      YUY2 15fps
800 (H) x 600 (V) pixels :   MJPEG 30fps      YUY2 20fps
640 (H) x 480 (V) pixels:    MJPEG 30fps      YUY2 30fps
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)/Size  38X38mm, 32x32mm
Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"



Applications:



Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
